SM4-5 Straight Mixer Kit – Stainless Steel Exhaust Elbow
$504.00
Precision CNC machined, investment cast 316 stainless steel for custom applications
In stock
- This HDI Marine straight mixing elbow (SM4-5) is universally used for custom exhaust and is a great substitution for a fabricated mixing elbow. This allows you to separate the elbow for maintenance/cleaning unlike a welded in place mixer.
- Precision CNC machined, investment cast 316 stainless steel

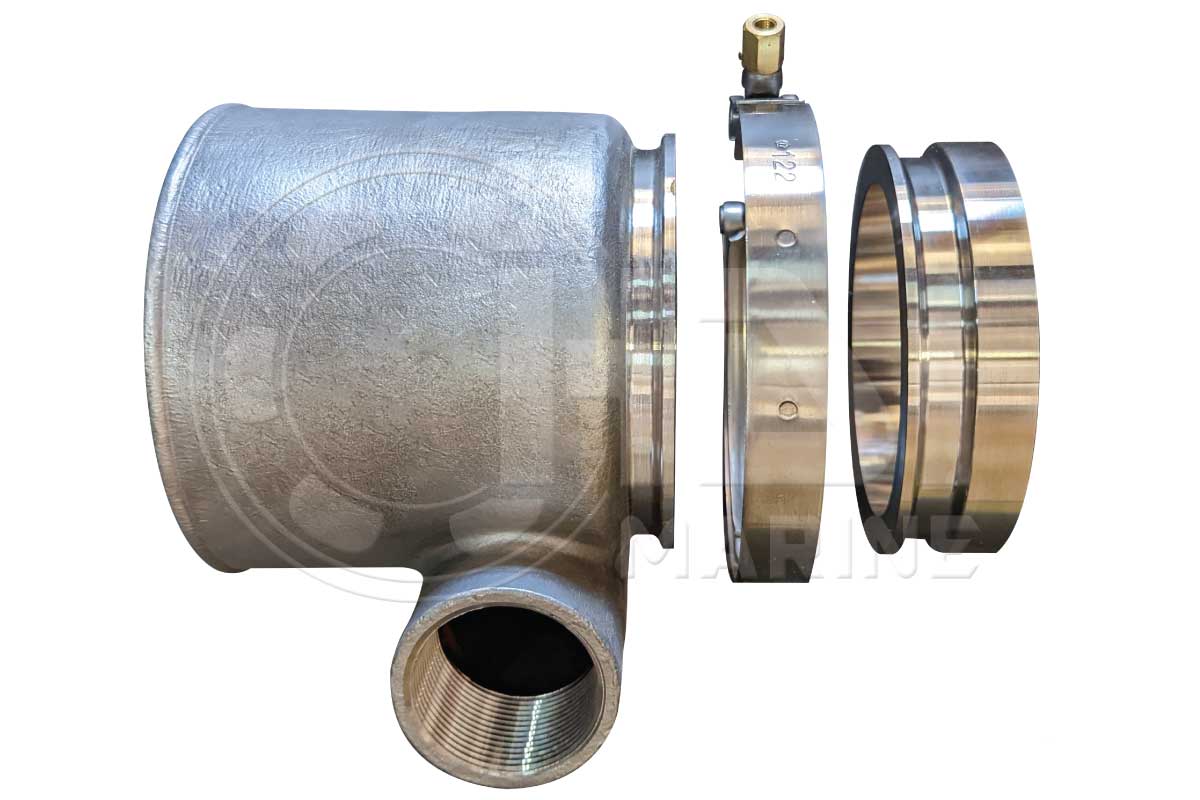

- Straight mixer kit includes mixing elbow, weldable, stainless steel flange and stainless v-band clamp. Flange is designed to be welded to stainless tube.
- 1-1/2″ NPT threaded hole for water connector barb (not included)
- Tube size to be used is 4” (101mm)
- 5” (127mm) OD discharge diameter
- Product weighs 8 lbs (3.6kg)
- Shipping weight is 9.5 lbs (4.3kg)
| Weight | 10 lbs |
|---|---|
| Dimensions | 11 × 8 × 6 in |
